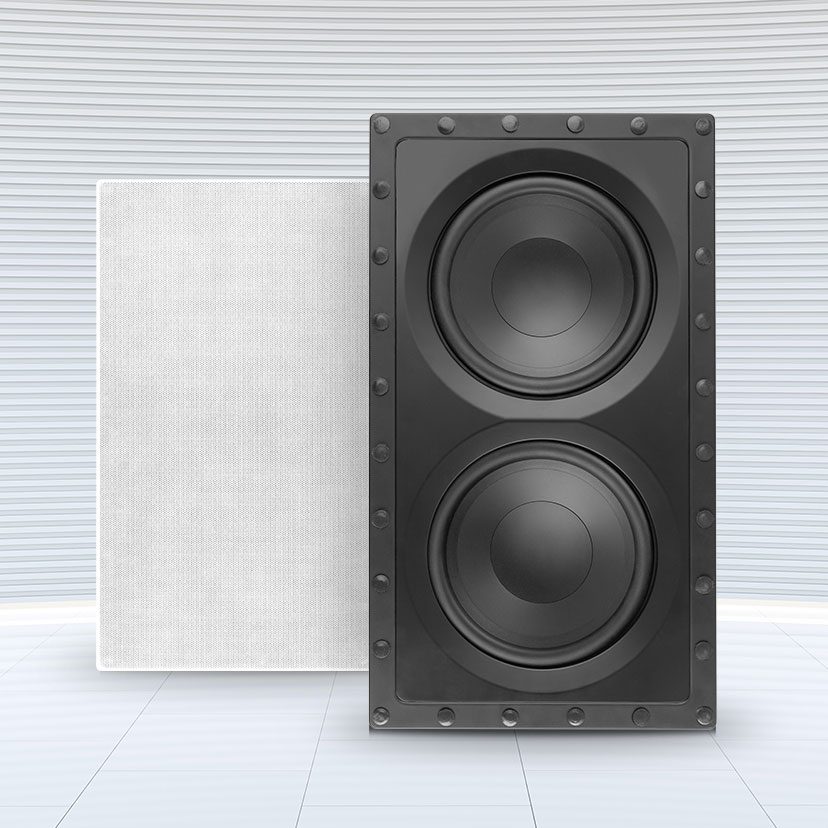

Design | Dual high-excursion drivers, in-wall, GRIPTM chassis/mounting bracket, and optional backbox |
Frequency Response | +/-3dB from 30->190 Hz |
Low Frequency Extension*† | 25 Hz (DIN) |
Max input power | 400W |
Minimum Mounting Depth | 3-1/2” (8.9cm) |
Minimum Mounting Depth | 19-1/8” x 10-3/4” x 3-1/2” (48.5cm x 27.2cm x 8.9cm) |
Low Frequency Driver | Two 8” (210-mm) CFPTM carbon- fiber-reinforced polypropylene cones, 1-1/2” (38-mm) voice coils, over- molded TPRTM surrounds, 1-1/2” (38- mm) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures |
Internal Volume | 88L “standard” wall cavity (26L when installed in optional backbox) |
Suitable Amplifier Range | 50-800W |
Weight | 15lbs (6.8kg) each |
Cut-Out Dimensions | 18” x 9-5/8” (45.7cm x 24.5cm) |
Finish | White, paintable |
